P5 Indoor LED Video Wall Display With 3528 LED Lamps 640x640mm Aluminum Cabinet Shenzhen Factory

Name: P5 Indoor LED Video Wall Display With 3528 LED Lamps 640x640mm Aluminum Cabinet Shenzhen Factory
Brand: SMART LED
Price: 1 USD

Quality P5 Indoor LED Video Wall Display With 3528 LED Lamps 640x640mm Aluminum Cabinet Shenzhen Factory for sale

Brand Name : SMART LED

Model Number : P5 640x640mm Rental display

Certification : CE,ROSH,FCC,EMC

Place of Origin : China

MOQ : no requirement

Payment Terms : T/T

Supply Ability : no requirement

Delivery Time : 12 Days

Packaging Details : Wooden package/Fly case

Item : P5 SMD Indoor Full Color

LED Lamp : SMD 3528

Cabinet Size : 640mm*640mm

Cabinet Resolution : 128*128

Driving Method : 1/16 Scan

One Sqm pixel : 40000 led

Brightness : 1500mcd

Cabinet Materials : Aluminum

Contact Now

P5 Indoor LED Rental display 3528LED 136Cabinet Cabinet Size:640x640mm

Applications

P5 Indoor LED Video Wall Display With 3528 LED Lamps 640x640mm Aluminum Cabinet Shenzhen Factory

Product Features

* Cabinet Install to the wall,Module magnet service

* Used LED Processor can open 2 windows on the LED Display.

* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.

P5 Indoor LED Video Wall Display With 3528 LED Lamps 640x640mm Aluminum Cabinet Shenzhen Factory

PH5mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No.	Item	Luminous Intensity	Viewing Angle(H/V)	Wavelength	Test Condition
1	Red LED (Epistar DICE)	800-1000	140º/120º	620-630nm	25℃,20mA
2	Green LED(Epistar DICE)	1300~1500	140º/120º	520-535nm	25℃,20mA
3	Blue LED (Epistar DICE)	250~500	140º/120º	465-475nm	25℃,20mA
Module Specifications
1	Pixel Pitch	5mm
2	Pixel Configuration	3-in-1, SMD 3528
3	Module Size	320mm X*160mm
4	Module Resolution	64*32
5	Hub connecting	HUB75
6	Module power	5V3.6A 18W
Cabinet Specification
1	Cabinet Size(WXHXD)	640mmLx640mmHx95mmD
2	Cabinet Resolution	128x128 pixels
3	Module Quanity	8 pcs
4	Cabinet Pixels	16384 dots
5	Pixel Density	112896 dots/m2
6	Average Power Consumption	100W/cabinet
7	Max. Power Consumption	200W/cabinet
8	Material	Alum
9	Cabinet Weight	8 KG
10	Protective Grade	IP33
Screen Parameters
1	Whole screen size	5m*3m=15 sqm
2	LED Display piexl	1680*1008
2	Cabinet quantity	60 pcs
3	Brightness	≥1000 mcd/㎡
4	Brightness(Max./Min.)	1.2:1
5	Driving Method	1/28 Scan
6	View Angle	Horizontal 140° Vertical 120°
7	Optimal Viewing Distance	6M
8	Brightness Control	Red,Green and Blue 256 Grade/Each
9	Refresh rate	>1920HZ
10	Frame Frequency	60Hz
11	Input Voltage	AC220V/50Hz or AC110V/60Hz
12	Defects Rate	≤0.00001
13	Power Consumption	Max.: 800W/㎡ Average: 300W/㎡
14	Screen weight	≤35kg/㎡
15	MTBF	>10,000 hours
16	Life span	≥100,000 hours
17	Module Display Brightness Uniformity	<2%
18	Earth Leakage Current	<3mA
19	Protective Grade	IP33
20	Temperature-operating	﹣25℃～45℃
21	Humidity-operating	10%～95%
22	Controlling system	LINSN
23	Operating System	WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included. 2. 30% Down Payment before Production, Balance before shippment 3. Lead time:15 working Days against down Payment 4. Two Years Maintain Replacement free.

P5 Indoor LED Video Wall Display With 3528 LED Lamps 640x640mm Aluminum Cabinet Shenzhen Factory

Product Tags:

led screen video wall

led video board

3528 LED Lamps Video Wall Display

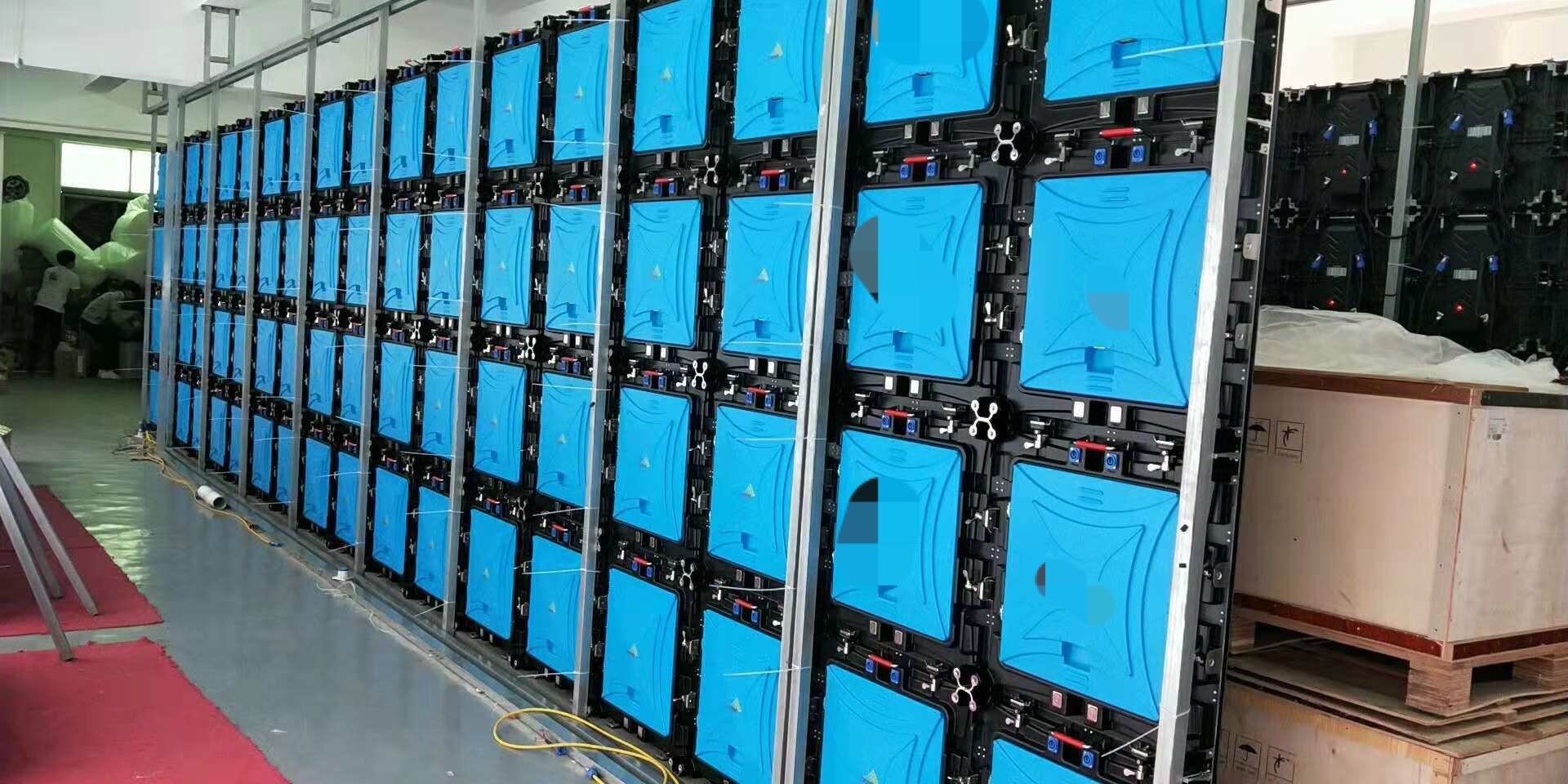

P5 Indoor LED Video Wall Display With 3528 LED Lamps 640x640mm Aluminum Cabinet Shenzhen Factory Images
