Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory

Product Categories
Shenzhen LCS Display Technology Company., Ltd
Contact Now

Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory

Brand Name : SMART LED

Model Number : P2 Indoor LED Display

Certification : CE,ROSH,FCC

Place of Origin : China

MOQ : no requirement

Payment Terms : T/T

Supply Ability : no requirement

Delivery Time : 15 Days

Packaging Details : Wooden package,

Item : P2 SMD Indoor Die-case

LED Lamp : SMD 1515

Dot Density : 250000 led

Driving method : 1/64 Scan

Cabinet Size : 512mmx512mm

Cabinet Resolution : 336x252

Protective Grade : IP33

Refresh rate : >3840Hz

Brightness : 1000mcd

Project location : Colombo Sri Lanka

Contact Now

Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory

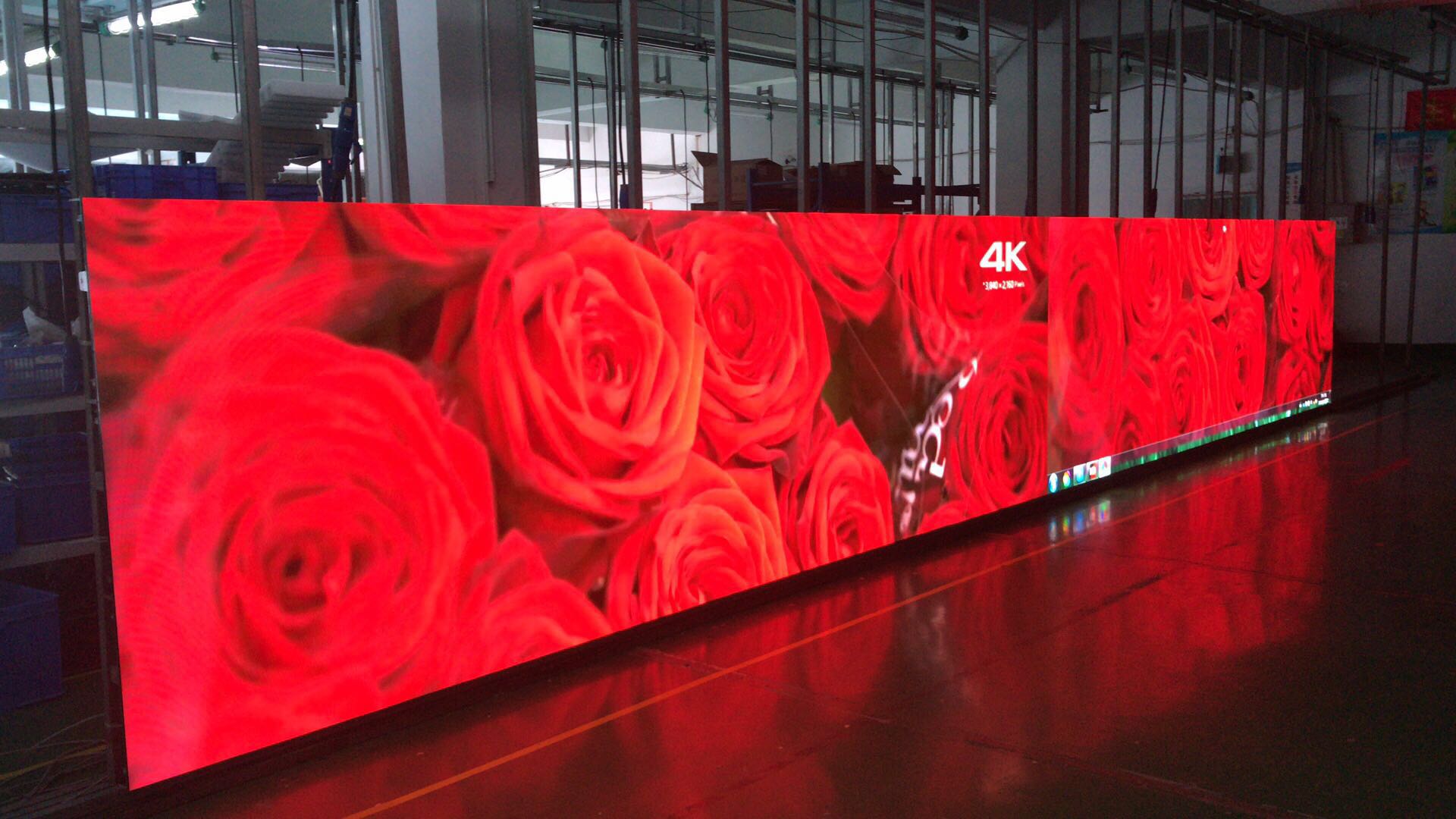

P2 Indoor HD-LED Video screen Airport project Display size:5.12m*3.072m Die-case Fast install

Applications
Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory

Product Features
* Cabinet Install to the wall,Module magnet service
* Used LED Processor can open 2 windows on the LED Display.
* Power supply and Controller service from the front side.

What we can do

* Project advise,Make the easy project design,easy for install and service

* Free on-line support

* We will send the setting file send with the goods. And also we will keep the Project file.


Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory



Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen FactoryPH2mm LED SMD Indoor Display Specification
Technicial Parameters
LED Parameters
No. Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
1 Red LED (Epistar DICE) 800-1000 140º/120º 620-630nm 25℃,20mA
2 Green LED(Epistar DICE) 1300~1500 140º/120º 520-535nm 25℃,20mA
3 Blue LED (Epistar DICE) 250~500 140º/120º 465-475nm 25℃,20mA
Module Specifications
1 Pixel Pitch 2mm Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory
2 Pixel Configuration 3-in-1, SMD 1515
3 Module Resolution 128 X 64
4 Module Pixles 8192
5 Module Size 256mm X 128mm
6 Module power 5V6A 30W
Cabinet Specification
1 Cabinet Size(WXHXD) 512mmLx512mmHx100mmD Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory
2 Cabinet Resolution 256x256
3 Module Quanity 8 pcs
4 Cabinet Pixels 65536 dots
5 Pixel Density 250000 dots/m2
6 Average Power Consumption 100W/cabinet
7 Max. Power Consumption 300W/cabinet
8 Material Alum
9 Cabinet Weight 7.5 KG
10 Protective Grade IP33
Screen Parameters
1 Whole screen size 5.12mx3.072m = 15.72 sqm

Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory
Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory
Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory
2 LED Display piexl 2560 * 1536
2 Cabinet quantity 10pcs*6pcs =60 pcs
3 Brightness ≥1000 mcd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/64 Scan
6 View Angle Horizontal 140° Vertical 120°
7 Optimal Viewing Distance 6M
8 Brightness Control Red,Green and Blue 256 Grade/Each
9 Refresh rate >3840HZ
10 Frame Frequency 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max.: 800W/㎡
Average: 300W/㎡
14 Screen weight ≤28.6kg/㎡
15 MTBF >10,000 hours
16 Life span ≥100,000 hours
17 Module Display Brightness Uniformity <2%
18 Earth Leakage Current <3mA
19 Protective Grade IP33
20 Temperature-operating ﹣25℃～45℃
21 Humidity-operating 10%～95%
22 Controlling system Nova
23 Operating System WIN7/WIN8/WIN10
Remarks:
1. Software and User’s manual in English included.
2. 30% Down Payment before Production, Balance before shippment
3. Lead time:15 working Days against down Payment
4. Two Years Maintain Replacement free.



Out Producing department
Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory

Packaging and shipping
Packing:1.Wooden case
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory

Airport Use LED Large Screen Display Anti Shake Digital Signage LED Screen Shenzhen Factory
